Description
ABS enclosures with rounded corners with one or two push-button configurations. The base has a integral PCB mounting studs. The enclosure is supplied with two metal contacts for 12V battery (Mod. AB12). Matt surface finish. Closing by one screw.
Details
Products
| |
|---|---|

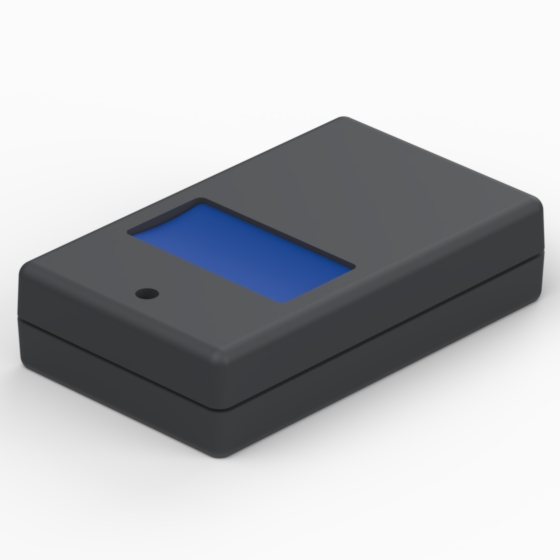

| Model | 10120.2 |
| L (mm) | 61 |
| W (mm) | 37 |
| H (mm) | 15 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 43 |
| MAX PCB W (mm) | 31,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

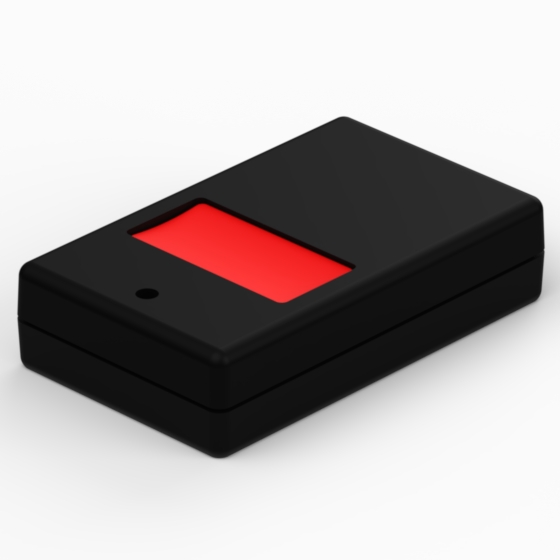

| Model | 10120.9 |
| L (mm) | 61 |
| W (mm) | 37 |
| H (mm) | 15 |
| Color (Ral) |
9004 |
| Material | GP40 |
| MAX PCB L (mm) | 43 |
| MAX PCB W (mm) | 31,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

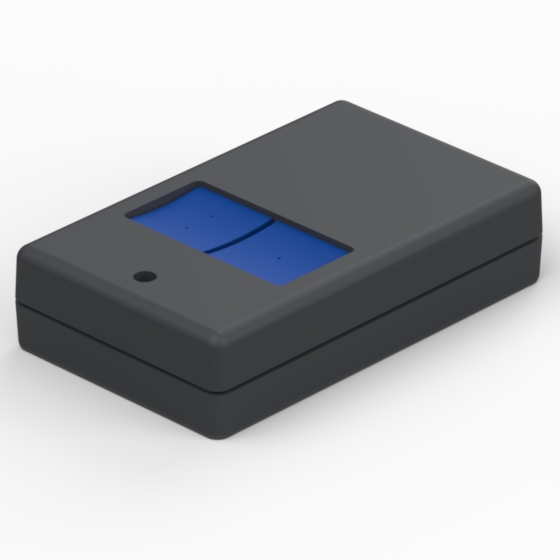

| Model | 10120/2.2 |
| L (mm) | 61 |
| W (mm) | 37 |
| H (mm) | 15 |
| Color (Ral) |
7012 |
| Material | N-UT |
| MAX PCB L (mm) | 43 |
| MAX PCB W (mm) | 31,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | 10120/2.9 |
| L (mm) | 61 |
| W (mm) | 37 |
| H (mm) | 15 |
| Color (Ral) |
9004 |
| Material | GP40 |
| MAX PCB L (mm) | 43 |
| MAX PCB W (mm) | 31,5 |
| Screws | 1 |
| Battery | 1 x 12V |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
10120.2 | 61 | 37 | 15 |
7012 |
N-UT | 43 | 31,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
10120.9 | 61 | 37 | 15 |
9004 |
GP40 | 43 | 31,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
10120/2.2 | 61 | 37 | 15 |
7012 |
N-UT | 43 | 31,5 | 1 | 1 x 12V |
PDF DWG |
View
|
|
|
|
10120/2.9 | 61 | 37 | 15 |
9004 |
GP40 | 43 | 31,5 | 1 | 1 x 12V |
PDF DWG |
View
|
