Description
The DISSIPATOR family of modular instrument utilises a versatile selection of aluminium extrusions, together with black steel coverplates to provide a wide range of electronic equipment enclosures. All are easily assembled with just a screwdriver. The extrusions and the back panel are black anodised aluminium, the front panel is silver anodised.
Details
Products
| |
|---|---|
| Model | DS1470.18 |
| L (mm) | 176 |
| W (mm) | 126,3 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | DS2470.18 |
| L (mm) | 176 |
| W (mm) | 233 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | DS2480.18 |
| L (mm) | 286 |
| W (mm) | 233 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

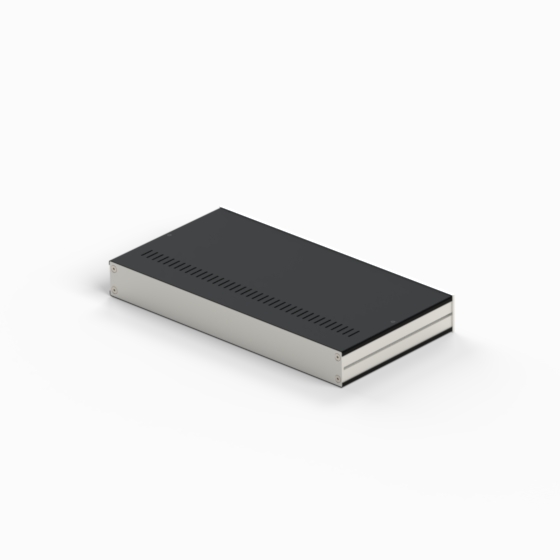

| Model | DS3470.18 |
| L (mm) | 176 |
| W (mm) | 334 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | DS3480.18 |
| L (mm) | 286 |
| W (mm) | 334 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SL170.18 |
| L (mm) | 177 |
| W (mm) | 483 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |

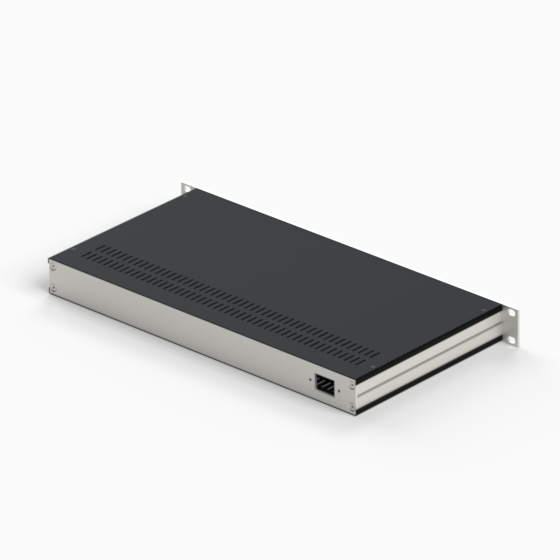

| Model | SL230.18 |
| L (mm) | 237 |
| W (mm) | 483 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| |
| Model | SL280.18 |
| L (mm) | 287 |
| W (mm) | 483 |
| H (mm) | 43 |
| Color (Ral) |
9004 9006 |
| Material | |
| MAX PCB L (mm) | - |
| MAX PCB W (mm) | - |
| Screws | - |
| Battery | - |
| Accessories | |
| Drawings |
PDF DWG |
| Other |
View
|
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DS1470.18 | 176 | 126,3 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
DS2470.18 | 176 | 233 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
DS2480.18 | 286 | 233 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
DS3470.18 | 176 | 334 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
DS3480.18 | 286 | 334 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
SL170.18 | 177 | 483 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
SL230.18 | 237 | 483 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
||
|
|
SL280.18 | 287 | 483 | 43 |
9004 9006 |
- | - | - | - |
PDF DWG |
View
|
12 product families, 152 series. You can't find what you're looking for? Contact us
